A156X Through Roof

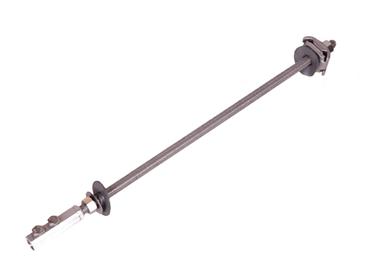

Through roof assembly with premium die cast parallel connector at the top that accepts two cables. A 1/2" diameter x 18" long all thread aluminum riser bar. provides the through roof transition to a machined aluminum vertical connector at the lower end. This assembly is used as a transition from roof to downlead cables at large eave overhangs or to bring exposed chimney air terminals through the roof to a concealed system. For conductors through No. 506/A508.
- Different length riser bars are available. Contact factory for additional information.
